Handheld 3D LiDAR Scanner (S20)

Product Summary

The S20 Handheld 3D LiDAR Scanner is a high-precision device designed for both indoor and outdoor use, integrating LiDAR with visual SLAM. It delivers dense, real-time point clouds and high-quality point cloud colorization. The scanner features dual 1” CMOS sensors with 16 MP per lens (32 MP total), ensuring clearer photos and better color accuracy.

Key Features

  • Mechanical Shutter: Reduces rolling-shutter effects, improving global exposure, color accuracy, and close-range photogrammetry.
  • Point Cloud Output: Up to 200,000 points per second at 10 Hz; point thickness ≤1 cm, relative accuracy ≤1 cm, absolute accuracy ≤5 cm.
  • Range: ~0.1-40 m at 10% reflectivity, up to 70 m at 80% reflectivity.
  • Integrated RTK GNSS: For survey-grade georeferencing.
  • Power: Lightweight body with a quick-release battery, up to 150 minutes of runtime, USB-C PD fast charging.
  • Storage & Connectivity: 256 GB internal storage (expandable), TF card, USB-C, Wi-Fi 6 (2.4G/5G) for fast transfer and live preview.
  • Proprietary SLAM: Combines LiDAR and visual SLAM for robust tracking in complex environments, providing real-time visualization and color point clouds.

Applications

The S20 is suitable for applications requiring high-precision 3D scanning, mapping, and georeferencing, both indoors and outdoors.

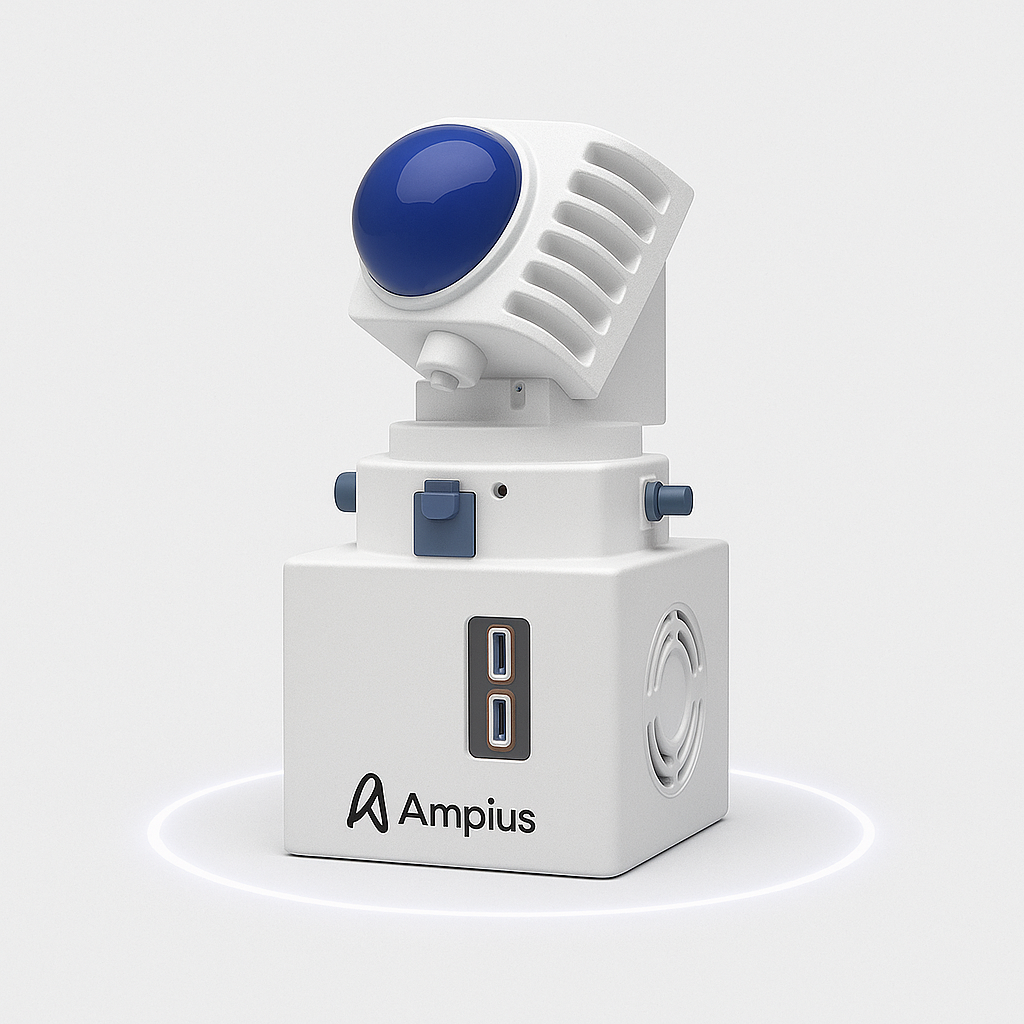

Intelligent Sensing Module (R30)

Product Summary

The R30 Intelligent Sensing Module is an active scanning system that lowers operational thresholds and enhances robustness. It features full-scene coverage using quad fisheye cameras, offering complete point cloud coverage. With a point cloud frequency of 10 Hz, the module generates 200,000 points per second, with a measurement range of 0.1 m to 40 m at 10% reflectivity.

Key Features

  • Field of View (FOV): Horizontal 360°, Vertical -30° to 150°.
  • Accuracy: Absolute accuracy of ±2 cm, relative accuracy of ±1 cm.
  • Scanning Duration: Operational duration of more than 1 hour.
  • Charging: TYPE-C, PD 65W fast charging.
  • On-board Storage: 1 TB.
  • Camera: Quad fisheye panoramic camera with video stream.
  • Processing Method: Real-time settlement and fast post-processing.
  • Point Cloud Formats: Supports common formats and color point clouds.
  • Dimensions: 85 mm × 85 mm × 290 mm, Weight: 800 g.
  • Multi-platform Extension: Can be integrated on handheld devices, robotic dogs, UMVs, UAVs, humanoid robots, etc.

Applications

The R30 Intelligent Sensing Module is ideal for a range of applications requiring precise scanning and robust tracking across different platforms.
