UAV Products

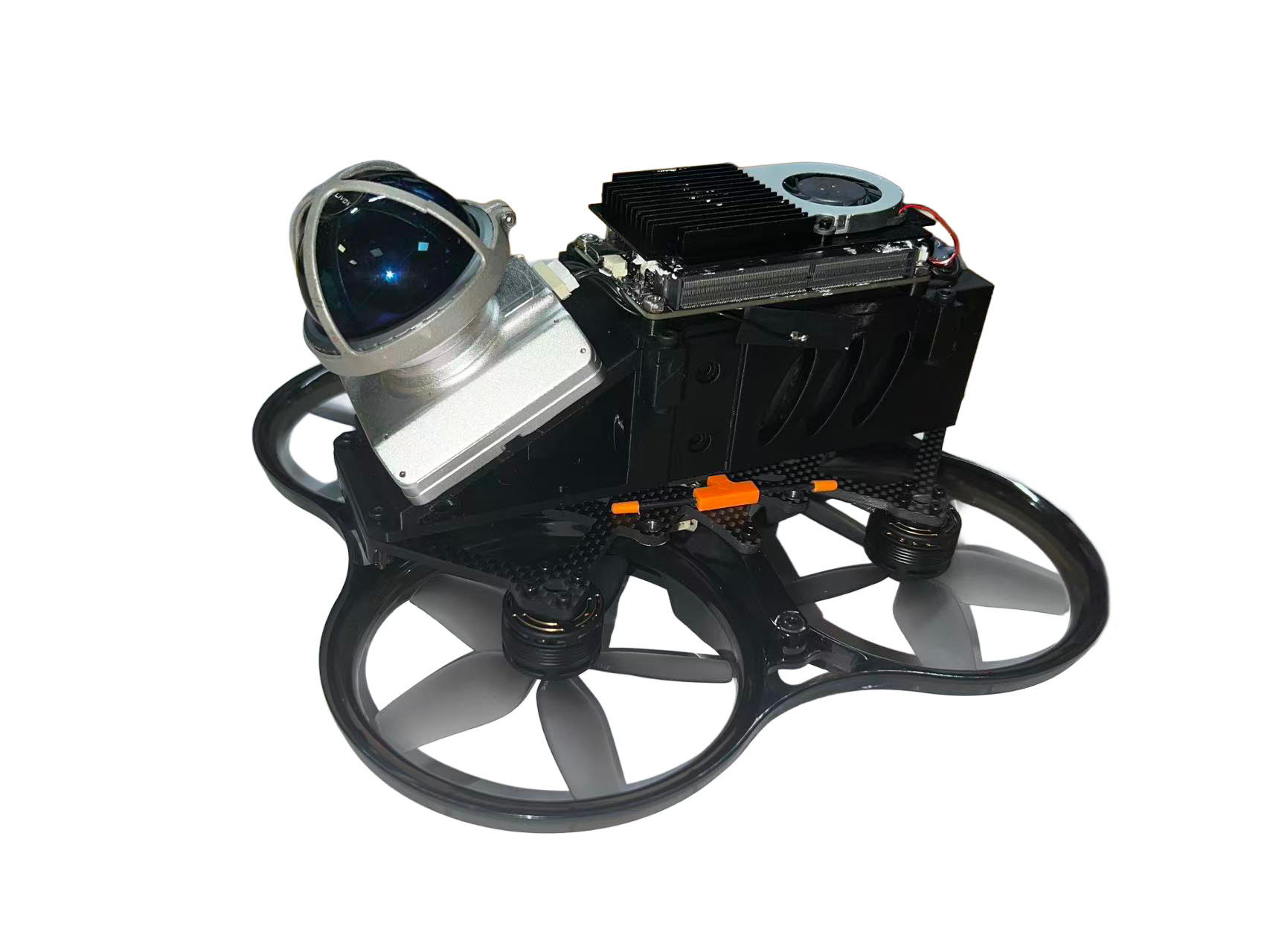

CertaintyX Drone S (SA01)

CertaintyX Drone S (SA01)

Product Summary

The CertaintyX Drone S (SA01) is a high-performance unmanned aircraft system designed for multi-payload operations. It features lightweight construction, strong stability, and modular expansion capability. The drone has an empty mass of 0.48 kg and a maximum take-off mass of 1.6 kg. It is equipped with a 6S 2900 mAh LiPo proprietary battery that supports up to 12 minutes of flight time, with a maximum speed of 5 m/s and an operational altitude of 190 ft. The system operates on 2.48 GHz with 100 mW ERP/EIRP output.

Integrated Payloads

  • Livox MID-360 LiDAR: 905 nm wavelength, 360° x 59° FOV, 70-100 m range, 0.27 kg.
  • Thermal Camera: 640 x 512 resolution, 2°C sensitivity, 2x digital zoom.
  • Visible Camera: 1/2.8" CMOS, 8 MP, fixed-focus, 6x digital zoom, 0.1 lux minimum illumination.
  • Microphone Module: 48 kHz sampling, 20 kHz bandwidth, 14-40 dB dynamic range.

Key Features

  • Payload modularity enables simultaneous mapping, recognition, inspection, and surveillance missions.
  • Supported flight modes: Altitude Hold, Auto Waypoint, Position Hold, Tethered Mode.
  • Failsafe functions: RTL (Return-to-Launch), Hovering, Emergency Landing.
  • System warnings: Battery Failsafe, Radio Failsafe, GPS Glitch, Proximity Warning, Compass Variance, LiDAR Failsafe.

Ground Control Station

  • Processor: Intel® Core™ i9-14900
  • Display: 16" QHD+ display
  • RAM: 32 GB DDR5
  • Connectivity: Wi-Fi 6E/7, GPS/LTE options
  • Operating Endurance: 5-6 hours

Suitable Applications

  • Aerial surveying
  • Emergency response
  • Inspection
  • Security
  • Environmental scanning
  • Multi-sensor data acquisition
UAV AEOS

UAV AEOS

Product Summary

The CertaintyX AEOS is a multi-mission unmanned aircraft engineered for endurance and stability. With a 1.3 kg empty mass and 3.0 kg maximum take-off weight, the 0.43 m fuselage and 0.48 m wingspan platform sustains 20-minute sorties at up to 5 m/s with a 190 ft service ceiling. An OEM proprietary 6S 6800 mAh LiPo pack weighing 0.50 kg powers the airframe while maintaining a 2.48 GHz, 100 mW ERP/EIRP command and telemetry link.

Integrated Payloads

  • CertaintyX Rotating LiDAR: 0.42 kg module operating at 905 nm with a 360° × 300° field of view and 70-100 m effective range.

Key Features

  • Compact 0.43 m length and 0.48 m wingspan streamline deployment without sacrificing payload capacity.
  • 20-minute endurance powered by the 6S LiPo energy system supports extended low-altitude inspection corridors.
  • 5 m/s maximum speed and 190 ft operational ceiling balance coverage with regulatory compliance.
  • 2.48 GHz/100 mW datalink delivers reliable control channel performance in dense RF environments.

Flight & Safety Systems

  • Flight modes: Altitude Hold, Auto Waypoint, Position Hold, and Tethered Mode for adaptable mission profiles.
  • Return-to-Launch: Automated climb, hover, and emergency landing behaviours ensure safe recovery.
  • System warnings: Battery, radio, GPS glitch, proximity, compass variance, LiDAR, and motor monitors keep crews informed.

Ground Control Station

  • Platform: Intel® Core™ i9-14900 processor running Windows 10 Pro within a Toughbook Universal Bay architecture.
  • Display: 16" QHD+ (2560 × 1600) panel supporting up to 240 Hz refresh for high-fidelity mission visuals.
  • Memory: 32 GB DDR5 RAM for parallel payload control and data processing workloads.
  • Connectivity: 2× USB 3.1, 1× USB 3.1 Type-C PD, HDMI, LAN, SDXC, Wi-Fi 6E/7, Bluetooth 5.x, plus optional dedicated GPS/LTE modules.
  • Ruggedization: Honeycomb magnesium casing with carry handle, shock and vibration protection for vehicle docking, -10 °C to +50 °C operating range, and 5-6 hour endurance.
